Many kinds of problems get classified as technical debt. Most generally it’s problems where:
In the past, we made a decision to borrow against our future productivity in order to achieve earlier product delivery;
Because of that past decision, we must now make recurring interest payments in the form of wasted effort.
Engineers hate waste. Waste makes us want to barf. So it’s obvious to us that technical debt must be faced head-on and paid down. We therefore propose to management, “Let’s take technical debt more seriously.” Management usually replies one of two ways:
No. We have to keep setting aggressive feature deadlines. We don’t have the luxury of looking back.
Sure! How much of your time do you want to spend on tech debt reduction? How about 20%?
At least #1 is internally consistent.
#2 is scatter-brained. Why should we only spend part of our time doing work that maximizes value, and the rest of our time doing other, less optimal work?
A realistic manager would say, “If you have a proposed improvement that’ll reduce wasted effort, then make a case for the soundness of that proposal as an investment.” If we can save 32 labor-hours over the next 3 years, but it’ll only cost 8 labor-hours to do it, then maybe let’s do it. If it’ll cost 40 labor-hours, then you should just keep on wasting that effort.
Reducing wasted effort may feel like an obvious good, but reducing wasted effort isn’t the goal of a company. Making money is.
Sometimes, during an incident post-mortem, we need to talk about the actions of a specific person. It’s awkward. We want to be blameless, right? If we say, “Steve rebooted the wrong server,” aren’t we undermining the principle of blamelessness? Shouldn’t we say, “An engineer rebooted the wrong server” instead?
This tension is rooted in a misunderstanding of blamelessness. The purpose of the blameless post-mortem is not to make everyone feel comfortable. Discomfort can be healthy and useful. The purpose of the blameless post-mortem is to let us find explanations deeper than human error.
If we say, “This outage happened because Steve rebooted the wrong server,” then we make Steve the sole agent in the narrative. By this logic, the only way to avoid more future outages is for Steve to do better (or get fired). This is the kind of shallow analysis that blameless post-mortems help us avoid.
But it’s okay to say, “Steve rebooted the wrong server,” as long as you don’t blame Steve for the failure. You’re just stating a fact. Everybody knows it was Steve who rebooted the server. Steve sure knows it: he’s been beating himself up about it all weekend.
But why did Steve reboot the wrong server? Could it have had something to do with the fact that the server’s command prompt contains the opaque EC2 instance ID instead of a meaningful hostname? Was Steve coming off a 70-hour week? Come to think of it, why is it that rebooting that particular server can cause a total failure? If you’re asking questions like these instead of stopping at “Steve fucked up,” then you’re doing blamelessness.
So just say the name. It’s fine.
P.S. – obviously this doesn’t apply if you’re in the kind of organization that will retaliate against Steve for making an honest mistake. Don’t sell out your coworkers to bloodthirsty management.
When an incident response process is created, there arise many voices calling for measurement. “As long as we’re creating standards for incidents, let’s track Mean-Time-To-Recovery (MTTR) and Mean-Time-To-Detection (MTTD) and Mean-time-Between-Failures (MTBF)!” they say things like.
Usually there’s no further discussion on this point. Everyone agrees that more data is better (“but let’s make sure we interpret the data correctly, of course!”). As practitioners, it’s exciting to think that these metrics will finally let us demonstrate concrete results for all the effort we put into reliability. Middle management, for its part, looks forward to having a “north star” for reliability work. No more wishy-washy “we believe this project improved system reliability substantially” hand-waving: the initiative either moved the needle on MTBF or it didn’t.
The assumption underlying all this is that incident data can shed light on a system’s reliability. But this assumption is never warranted. Analysis of your incident data may shed light on your incidents. But incident data really can’t tell you anything about your reliability.
Picture this. Your team owns a web service. You’ve set up an alert on latency. If the 90th percentile latency exceeds 100 milliseconds, your team gets paged and you start an incident.
One day, you find out that, really, if that 90th percentile latency even gets above 50 milliseconds, it’s already a problem. Downstream services start getting sluggish, and user experience suffers. “No problem,” you say, lowering the alert threshold to 50 milliseconds.
Now you’re able to observe more failures. Or, if you prefer: you’ve widened the definition of “failure” to include more events. But thesystem’s reliability has in no way been altered. And yet, you will have more incidents. Possibly quite a few more! Mean-time-between-failures will drop.
Picture this. Every once in a while, the database gets into a “wedged” state, where a bunch of queries are piled up and work grinds to a halt. It’s simple to un-wedge it: just manually kill the query that caused the pileup, and everything else gets flushed through the system. Each time the database gets wedged, the database team gets paged, they start an incident, they find and kill the query, and the incident is over. These incidents happen semi-regularly, but at least they’re over quickly.
After a while, someone finally implements a fix. Those problematic queries? Gone! No more pointless incidents spun up just to manually clear out a pileup. And, more importantly: no more service degradations resulting from this problem. The reliability of the system has improved!
So what happens to the incident metrics? MTBF goes up, of course. That checks out: there are fewer incidents now. But what about MTTR? Before the fix, MTTR was low. These query-pileup incidents were frequent and short, so they kept mean-time-to-recovery anchored down. After the fix – which, remember, corresponded to a direct and pure improvement in reliability – mean-time-to-recovery is higher. Whoopsy daisy!
Picture this. You have a particular customer whose use-case tests the limits of your product’s capabilities. And furthermore, this customer is, let’s say, somewhat of a squeaky wheel. Every 2 or 3 weeks, they file a support ticket about something-or-other, and the problem is usually tricky enough that an incident gets spun up.
Eventually this customer has had enough. They leave. This represents both a sizable blow to revenue and a scathing indictment of your product’s reliability at scale. But, on the bright side, both MTTR and MTBF benefit enormously! That’ll look great on the quarterly slide deck.
When someone says they want to measure incident metrics (MTTR or MTBF or any other one in the family), I always want to ask them, “What’s your model?”
Many people rush to collect data without first considering whether they can come up with a model powerful enough to interpret the data. If our model is bad, then we’ll make bad decisions even with good data. And if, as is often the case, we have no explicit model at all, then our implicit model is just, “Reliability up, MTBF up, MTTR down.” Which, as we’ve seen, doesn’t match our observations even in straightforward, common scenarios.
Don’t waste time and energy collecting metrics you’ll never be able to use. Learn as much as you can from the failures themselves, and then move on.
The value of post-mortems is apparent: failures present opportunities to learn about unexpected behaviors of the system, and learning lets us make improvements to the system’s reliability.
The value of post-mortem documents is much less apparent.
Many R&D orgs will insist that the final draft of a post-mortem document have a particular structure. Common components of this structure include:
Start and end time of customer impact
Time to detection
Time to diagnosis
Time to recovery
A list of action items, each with a link to a ticket
Mitigation action items broken down into categories (e.g. “Prevention,” “Detection,” “Impact”)
Specific sections (e.g. “Timeline,” “What went wrong?,” “What can we do better?”)
Signoffs/approvals
None of these structural requirements facilitate learning. The benefits of post-mortem analysis come not from the document, but rather from the sense-making processes of which the document is an artifact. In order to understand a given failure, we invent hypotheses and test them against our mental model and the observable facts. In order to choose effective strategies for improvement, we converse and debate. And in order to make any of this matter, we establish accountability for seeing those strategies through.
These social processes are the source of the value of post-mortem analysis. The document is just a souvenir.
But what if you want to do meta-analysis? What if you want to analyze trends in incident characteristics over time, or categorize incidents according to some scheme? Don’t you need structure then?
I suppose you do. But good luck getting any useful information. No matter how much structure you insist on, the data set will be hopelessly noisy. Just try to state a hypothesis that can realistically be tested by a meta-analysis of a single organization’s incident data. I don’t think you can.
But what if structure helps me learn?
If structuring the post-mortem process helps you learn, then by all means! categorize! prompt! But recognize structure as a tool rather than an end in itself. Your learning process may benefit from one kind of structure, while somebody else’s may benefit from a different kind of structure, or less or more structure altogether. But the structure of the learning is what matters; not the structure of the document.
Organizational legibility
A requirement for post-mortem documents to have a specific, consistent structure doesn’t help us learn or improve. So why do we do it?
If you ask me, it’s all about the bureaucratic drive for legibility. Centralized power craves legibility.
Idiosyncratic processes like sense-making and learning are illegible to a command-and-control power structure. They come in diverse and intricate forms, instead of the standardized, codified forms that bureaucracy can parse. In service of legibility, a company’s power structure will insist that the post-mortem process culminate in spreadsheet-ready data items like “customer impact duration,” “time to recovery,” “severity level,” and the like. Centralized power demands these simplifications even if they inhibit learning and improvement. To the bureaucracy, legibility itself is the goal.
As an employee, you probably can’t totally disregard these bureaucratic impositions. But, to the extent you can disregard them, you should. Focus on what really matters: learning and improvement.
Over a decade ago, I saw this talk by John Rauser. Only recently, though, did I come to realize how incredibly influential this talk has been on my career. Gosh what a great talk! You should watch it.
If you operate a complex system, like a SaaS app, you probably have a dashboard showing a few high-level metrics that summarize the system’s overall state. These metrics (“summary statistics”) are essential. They can reveal many kinds of gross changes (both gross “large scale” and gross “ick”) in the system’s state, over many different time scales. Very useful!
But don’t be misled. Summary statistics reveal certain patterns in the system’s behavior, but they are not identical to the system’s behavior. All summary statistics – yes, even distributions – hide information. They’re lossy. It’s easy to get lulled into the sense that, if an anomaly doesn’t show up in the summary statistics, it doesn’t matter. But a complex system’s behavior is not just curves on a plot. It’s a frothing, many-dimensional vector sum of instant-to-instant interactions.
When you investigate an anomaly in summary statistics, you’re faced with a small number of big facts. Average latency jumped by 20% at such-and-such time. Write IOPS doubled. API server queue depth started rising at some later time. Usually, you “zoom in” from there to find patterns that might explain these changes.
When you instead investigate a specific instance of anomalous behavior, you start with a large number of small facts. A request to such-and-such an endpoint with this-and-that parameter took however many seconds and crashed on line 99 of thing_doer.rb. None of these small facts tell you anything about the system’s overall behavior: this is just a single event among millions or billions or more. But, nevertheless: these small facts can be quite illuminating if you zoom out.
First of all, this probably isn’t the only time a crash like this has ever occurred. Maybe it’s happening multiple times a day. Maybe it happened twice as often this week as it did last week. Maybe it’s happening every time a specific customer makes a specific API request. Maybe that customer is fuming.
And second of all, the reason this event caught our eye in the first place was because it was anomalous. It had some extreme characteristic. Take, for example, a request that was served with very high latency. Perhaps, in the specific anomalous case before us, that extreme latency didn’t cause a problem. But how extreme could it get before it did cause a problem? If it took 20 seconds today, could it take 30 seconds next time? When it hits 30, it’ll time out and throw an error. Or, if multiple requests like this all arrived at the same time, could they exhaust some resource and interfere with other requests?
If the only anomalies you investigate are those that show up in summary statistics, then you’ll only find problems that have already gotten bad enough to move those needles. But if you dig into specific instances of anomalous behavior – “outliers” – then you can often find problems earlier, before they become crises.
As an SRE, I’m a vocal believer in following one’s nose: seeking out surprising phenomena and getting to the bottom of them. By adopting this habit, we can find and fix many classes of problems before they turn into incidents. Over time, this makes things run much smoother.
But what is surprising? How do we decide what to ignore and what to chase down?
Here are 5 kinds of surprise that are worth digging into in production data.
Keep in mind that this list is based on one SRE’s experience. Someone else, with different intuitions about system behavior, would make a different list. And that list would be more valuable to them than this list.
The most important thing is not that we always pick the right surprises to investigate. It’s that we make time, consistently, to seek out and explain surprises.
Anyway. Here’s my list.
1. Long running requests
Pick a time window. Sort all the requests during that window descending by duration. At the top of this list, you’ll find classes of requests that spent extraordinarily long in your system.
Were you expecting to see these specific kinds of requests? If not, then congratulations: you’re surprised. And this is quite likely a surprise worth investigating, because
while these slow requests are running, they’re eating up resources (CPU, memory, sockets, and so on), which gives them an outsized potential to degrade the performance of other, unrelated requests.
without intervention, the underlying problem will probably get worse over time. Why wouldn’t it? It has already gotten this bad. And if it gets bad enough, it will eventually cause customer pain.
many of the phenomena contributing to this slowness probably affect a variety of requests. So, if you can make these requests perform better, you may be able to make other requests perform better too.
We don’t have to rigorously analyze and optimize every slow request that goes through the system. Just by coming to understand the issues that cause our slowest requests to be slow, we often find opportunities to make high-impact improvements and mitigate the risk of ending up on an incident call later.
2. Saturation

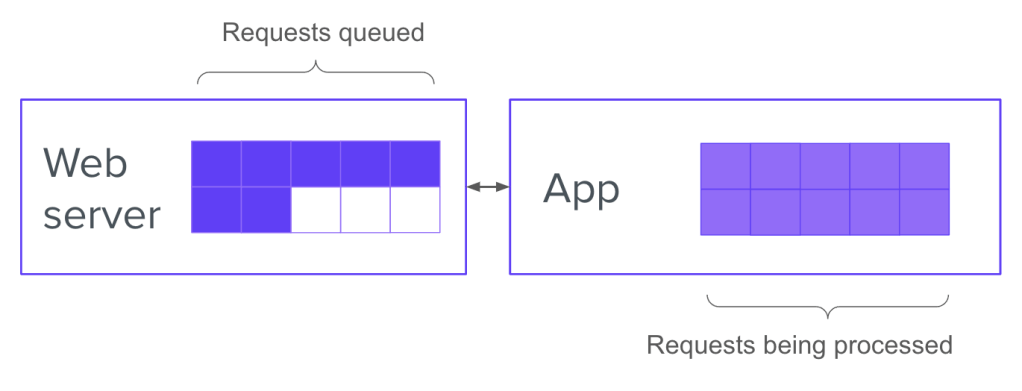

Saturation is when units of work are waiting in a queue to be processed – be they web requests, or IP packets, or threads, or what have you.
To the extent we’re trying to serve each request as quickly as possible, saturation anywhere is waste. We shouldn’t expect any saturation. Or, at least, we should strive to thoroughly understand every source of it. If we don’t understand it, it will probably get worse over time.
Find every metric that represents a saturation. Put them all on one dashboard. Look at that dashboard every day.
3. Crashes
Every time an exception bubbles up to the top of the stack, that’s unexpected. If it were expected, then the code would have caught and handled the exception.
A tool like Sentry or Datadog Error Tracking (I mention these specific products only because I know them, not because they’re necessarily the best) lets you classify crashes, and see which ones are new or getting more frequent. Granted: it’s often the case that there are far too many classes of crash to investigate all or even most of them. But this shouldn’t stop us from chasing down some of them, according to our intuition about their relative importance.
We have imperfect information until we get our hands dirty, so we won’t always end up picking the highest-impact investigations to undertake. But fixing crashes is always better than ignoring them, and by dividing up the extant crashes into groups and prioritizing one group at a time, we can create some very useful guarantees.
For example, if we find all the crashes that correspond to deadlocks, and fix those, then we guarantee that our system has no deadlocks. Thereafter, problems caused by deadlocks – which tend to be subtle, elusive, and therefore time-consuming to solve – can no longer quietly sow chaos.
4. Utilization spikes
It’s expected for a utilization metric (for example, network bandwidth or memory utilization) to move around a lot. But it’s not expected for utilization to exhibit large spikes. When this happens, it means some recurring event is using more than its fair share of some resource.
When utilization hits 100%, things will degrade catastrophically and immediately. So if you have utilization spikes representing 20% of capacity, then steady-state utilization only has to be 80% before catastrophic degradations start occurring. Or, if the spikes gets worse, and now they’re 30% of capacity, then 70% capacity becomes the new safe limit. We’ll have to waste at least 30% of our capacity by leaving it idle in order to prevent outages.
So why not understand the spikes now, before they get worse?
5. Correlation between latency and throughput
When we see recurring swings in latency metrics, it’s easy to say to ourselves, “Yeah, well, when we’re under more load, things slow down.” But… why? Systems don’t always behave like that! They do it when there’s a bottleneck. If the system were behaving as expected and no resources were exhausted, then the latency graph would be more or less flat.
In other words, if traffic tends to be higher mid-day on weekdays, and latency also tends to rise mid-day on weekdays, then you’re likely saturating at least one resource. Would you rather find that bottleneck is now, or during an incident?
I hope this list is a good place to start if you’re looking to dig up problems. But, ultimately, you must be the judge of what’s surprising to you. Find something you can’t explain. Explain it. Repeat.
Lately you see a lot of software company R&D teams organized around internal products. The Search Team provides a Search service and its “customers” are the teams whose code consumes that service. The Developer Productivity Team’s product is a suite of tools for managing local development environments and running tests, and its “customers” are the developers who use those tools. And so on.
The idea behind this organizational trick seems to be that product-oriented teams will act like a company. They’ll make better strategic decisions because their goals will be aligned with those of their internal customers.
This is pretty silly.
If a company satisfies the needs of its customers and potential customers, it can grow and thrive and put resources into attracting more revenue. If a company fails to satisfy customer needs, it loses out to competitors. As a company changes its strategy, the market provides feedback. These dynamics don’t exist for an internal team – especially a platform (or “infrastructure,” or “ops”) team.
When asked to think like a company in this way, a platform team will define their product as something like, “a reliable, performant, and secure platform for running software products.” Fine – but think of all the things that a company can do that you can’t do:
You can’t attract new customers
You can’t pivot to a different product
You can’t focus on a different market segment
You can’t sacrifice some set of customers to attract another
If you try to “think like a company” as a platform team, you will try to do what successful tech companies do: launch attractive features. But you can waste a lot of time that way, because the most important feature of a software platform is boringness.
If the platform team must act like a company, then it should act like a struggling company that’s desperate to keep its last few enterprise customers. This implies a very different strategy than that of a startup. Change as little as possible and put the bulk of your energy into efforts that increase boringness: documenting, simplifying, and fixing. Don’t build anything exciting if you can avoid it, and if you must build something, build it in service of boringness.
A bug in our deployment system causes O(N²) latency with respect to the number of deploys that have been performed. At first, it’s too minuscule to notice. But the average deploy latency grows over time. Eventually, deploys start randomly timing out. The deploy pipeline grinds to a halt, and it becomes an emergency.
Or maybe, if we think critically about the deploy latency time series soon enough, it might be obvious well in advance that something’s getting worse. We can fix this problem before it becomes a crisis. But in order to see it, we have to look. And we have to give ourselves time to go down the rabbit hole.
An API server has an edge case that leads to unconstrained memory usage. At first, this edge case only gets hit occasionally, and the API server’s memory usage stays well below capacity. But, as usage patterns evolve, we start to hit this bug more frequently, with larger and larger allocations of memory. For a while, we’re still below the OOMkill threshold. Once we start hitting that threshold, things get ugly. If we still continue to ignore it, then eventually, things will get so ugly that we’ll have to drop what we’re doing and fix this bug.
We had opportunities to see this coming. Depending on our willingness to dig in and investigate surprising phenomena, we could have discovered this problem when the OOMkills started, or even before they started – when these blips were just spikes on a memory graph.
A cron job runs every 30 minutes, and while it runs, it holds a database lock. When it’s first deployed, the cron job doesn’t have much to do, so it runs fast, and no one suffers. Over months, though, the cron job grows sluggish. It just has more work to do. Query pileups start to occur every 30 minutes. We start seeing significant impact on the latency of our application. And, one day, there’s an outage.
We’ll wish we’d dug in back when it was just a slow cron job. Or even when it was just query spikes.
You can prevent many things from turning into fires, but you need space. Space to be curious, to investigate, to explain your findings to yourself and others.
Suppose you spent a week looking for trouble like this, and you only happened to find 1 issue out of these 3. That’s still great, right? Compared to the cost of letting it become a disruption later?
When a system fails, it’s silly to blame practitioners for not seeing the signs. But that doesn’t mean we shouldn’t put in a serious effort to see the signs. If you give yourself space to follow the Huh!, you get opportunities to fix problems before they get worse.
Every time our system fails, and we go to analyze the failure, we find ourselves saying things like “We didn’t know X was happening,” “we didn’t know Y could happen,” and so on. And it’s true: we didn’t know those things.
We can never predict with certainty what the next system failure will be. But we can predict, because painful experience has taught us, that some or all of the causes of that failure will be surprising.
We can use that!
When we go looking at data (and by “data” I mostly mean logs, traces, metrics, and so on, but data can be many things), sometimes we see something weird, and we go like, Huh!. That Huh! is a signal. If we follow that Huh! – get to the bottom of it, figure it out, make it not surprising anymore – two things happen. First, we get a chance to correct a latent problem which might some day contribute to a failure. And second, we make our mental model that much better.
Of course, any individual Huh! could turn out to be nothing. Perhaps there’s a bug. Perhaps circumstances have shifted, and our expectations no longer line up with reality. Or perhaps it’s just a monitoring blip. We won’t know until we run it down.
But, whatever the shortcomings of any particular investigation, a habit of investigating surprises has many attractive qualities. The main one is that we get to fix problems before those problems get worse, start bouncing off other problems, and cause fires. In other words: our system runs smoother. Consider what that’s worth.
One day not long ago, as I was looking for trouble in a production system’s telemetry, I came across a puzzling phenomenon. I was examining the load balancer access logs for a particular API endpoint – an endpoint that does essentially nothing and should always return a 200 response within a handful of milliseconds. I saw this:
Metric
Value
My reaction
10th percentile latency
10ms
Okay,
Median latency
11ms
sure,
75th pecentile latency
14ms
fair enough,
90th percentile latency
160ms
mm-h– wait,
99th percentile latency
700ms
What??
“What gives?” I wondered aloud, cocking my head. “What could this request possibly be doing for 700 milliseconds? It has nothing to do.” That’s how I learned about an issue I’m calling upstream-local queueing. It’s a mostly stack-agnostic performance problem, and boy am I glad I found it early, because it has some dire scaling implications.
The problem
I’ll spare you a recapitulation of the head-scratching and data fumbling that ensued. Upstream-local queueing is when an upstream – an individual server tasked with responding to requests – is asked to handle more requests than it can handle concurrently. For example, suppose you have a cluster of load balancers, all of which independently distribute requests to upstreams. Each upstream has a maximum concurrency of 3.
Upstream-local queueing happens when, due to random chance, a particular upstream has 3 requests in flight, and happens to receive a 4th. The upstream can’t immediately start processing that 4th request, so it waits in a queue until some capacity frees up. And in the meantime, maybe a 5th request arrives. And so on.
So, even though the rest of the upstream cluster might have plenty of idle capacity available, these requests end up sitting around twiddling their thumbs, accumulating latency.
You’ll notice that I haven’t mentioned any particular technologies or load balancing algorithms yet. That’s because upstream-local queueing is a remarkably general phenomenon. The following system characteristics are sufficient for this problem to emerge:
The upstreams have finite capacity to handle concurrent requests.
The load balancer’s decisions about where to send each request are independent from each other.
Many systems satisfy these criteria.
It’s hard to observe
Upstream-local queueing can be tricky to observe directly. A queue can appear and disappear on any given upstream within a matter of milliseconds: far shorter than the time scales on which metrics tend to be collected. ULQ’s contribution to request latency therefore appears to be randomly distributed, and mostly 0.
Furthermore, at least in my case, the stack is not instrumented well for this. Upstream-local queueing occurs in somewhat of a black box. It’s an open-source black box, but due to the design of the component that’s handling these requests within the upstream, it’s non-trivial to observe the impact of ULQ.
Further furthermore, the severity of ULQ-caused latency is coupled to utilization, which in most real-world systems is constantly changing. And, furthestmore, unless you’re already in deep trouble, ULQ’s impact tends to be below the noise floor for all but the most painstaking measurement techniques.
The most painstaking measurement techniques
When I first set out to examine the upstream-local queueing phenomenon, I took a highly manual approach:
Pick an upstream
Search for load balancer access logs corresponding to requests that were sent to that upstream
Dump a CSV of those log entries
Run a script against the CSV that uses the timestamps and durations to reconstruct the number of requests in-flight to that upstream from instant to instant.
This was a pain in the ass. But I only had to do it 2 or 3 times before I determined that, yes: this was indeed happening, and it was causing nontrivial latency.
At this point, I was sure that I had found a big problem. But I couldn’t just go fix it. I needed to convince my colleagues. In spite of this problem’s recalcitrance to direct observation, I needed a clear and compelling demonstration.
A computational model
Lucky for me, queueing systems are easy to model!
I spent a day or two building a computational model of the behavior of an upstream under load. The model is on my GitHub. I won’t bore you with the details, but essentially, requests arrive at the upstream at a set interval, and each request takes a random amount of time to execute. If there are more than 12 requests in flight, further requests are queued until slots free up. We add up the number of microseconds spent queued versus in flight, and voilà: a working model that largely agrees with our real-world observations.
Here’s what the model told me:
In the graph above, each point represents a run of the simulation with a different average request rate. As you can see, the average number of milliseconds spent by requests in the upstream-local queue is tightly correlated to utilization, and it grows more or less exponentially.
This is a huge problem! As more capacity is used, requests experience, on average, exponentially more latency:
% capacity used
Average latency due to ULQ
40%
0.29ms
50%
2.22ms
60%
11.4ms
70%
38.4ms
80%
127ms
90%
461ms
95%
1372ms
And remember: this is just on average. 90th- and 99th-percentile latencies can climb to unacceptable levels far sooner.
What’s worse, ULQ affects all requests equally. If the average added latency is, say, 10ms, then a request that would normally take 1000ms will instead take 1010ms, for a slowdown of 1%. But a request that would normally take 5ms will take on average 15ms: a 300% performance hit. This means more requests sitting around in your stack eating up resources for no good reason. It also means, if clients of your service tend to do many individual requests in sequence (like a web browser, for example), that overall user experience can suffer drastically before this problem even appears that bad.
What to do about it
As I said before, this is a quite general problem. Switching web servers won’t fix it, nor will scaling up. Switching from random-number to round-robin load balancing, or vice versa, will not fix it. There are 3 classes of solution.
The first class of solution is the dumbest. But hey, maybe you need your upstream-local queueing problem fixed now and you don’t have time to be smart. In this case, here’s what you do: set a threshold, and meet it by keeping enough of your capacity idle. Referring to the table above, if we decided on a threshold of 11ms average ULQ latency, then we’d need to keep at least 40% of our capacity idle at all times.
I told you it was dumb. But it is easy. The other two solutions are less easy.
The second solution is to reduce your application’s latency variance. If some requests take 10 milliseconds and others take 30000, then upstream-local queueing rears its ugly head. If, instead, all your requests take between 30 and 35 milliseconds (or between 3 and 3.5 seconds, for that matter), its effect is much less pronounced. By hacking away at the long tail of your latency distribution, you may be able to push the worst effects of ULQ further to the right-hand-side of the graph. But, at the end of the day, exponential growth is exponential growth. It’s not really a fix.
The best thing you can do, of course, is use a more sophisticated load balancing algorithm. This necessitates that your load balancing software supports one. If, for example, you use a least outstanding requests algorithm, then upstream-local queueing simply won’t occur until you’ve exhausted all of your upstream capacity. It ceases to be a scaling problem.
How to tell how bad ULQ is in your stack
For a quick and dirty answer to the question “How much latency is ULQ contributing in my system?” you can make a simple graph dashboard. Take the 90th percentile latency as measured by the load balancer, and subtract the 90th percentile latency as measured by the upstream.
If these curves grow and shrink along with your throughput, you probably have an upstream-local queueing problem. And if the peaks are getting higher, that problem is getting worse.
The numbers resulting from this calculation are not a rigorous measurement of anything in particular. You can’t really add or subtract percentiles. But it’s often a very easy calculation to do, and as long as you don’t make inferences based on the values of the numbers – just the shapes of the curves – you can get some quick confidence this way before you proceed with a deeper investigation. And then you can fix it.
Dan Slimmon
